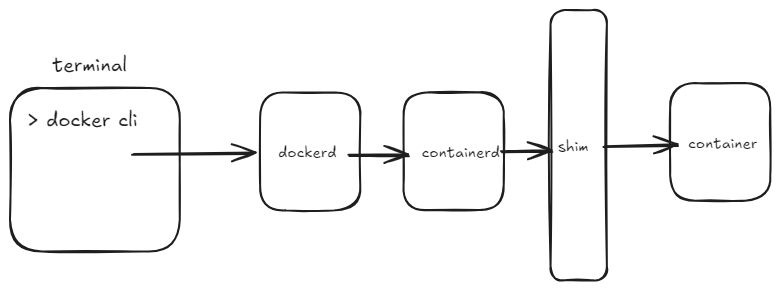

Docker runtime stack

1- docker cli

translate commands to rest api and send it over unix socket

docker run ngnix ===> POST /container/create {"Image":"nginx:latest", ....}

===> sent to: /var/run/docker.sock

so we can talk to dockerd with it

like

curl --unix-socket /var/run/docker.sock http://localhost/containers/json

2- dockerd

it’s an orchestrator

• manage images (pull, build)

• manage volume (create net, mount)

• manage network (bridge creation, port mapping)

docker run delegated to containerd not here !!

so dockerd when recieved “run nginx:latest”

it does:

• check if the image exist locally

• set up networking (ng_net bridge)

• set up volumes (my_data)

• tell containerd “start the container with these spec”

3- containerd

…

4- shim

…

5- container

…

The Important of caching in docker

if we run a simple docker file like this

# Use official nginx image as base

FROM nginx:latest



# Remove default nginx static files

RUN rm -rf /usr/share/nginx/html/*



# Copy your own HTML file into the container

COPY index.html /usr/share/nginx/html/



# Expose port 80

EXPOSE 80



# Start nginx

CMD ["nginx", "-g", "daemon off;"]

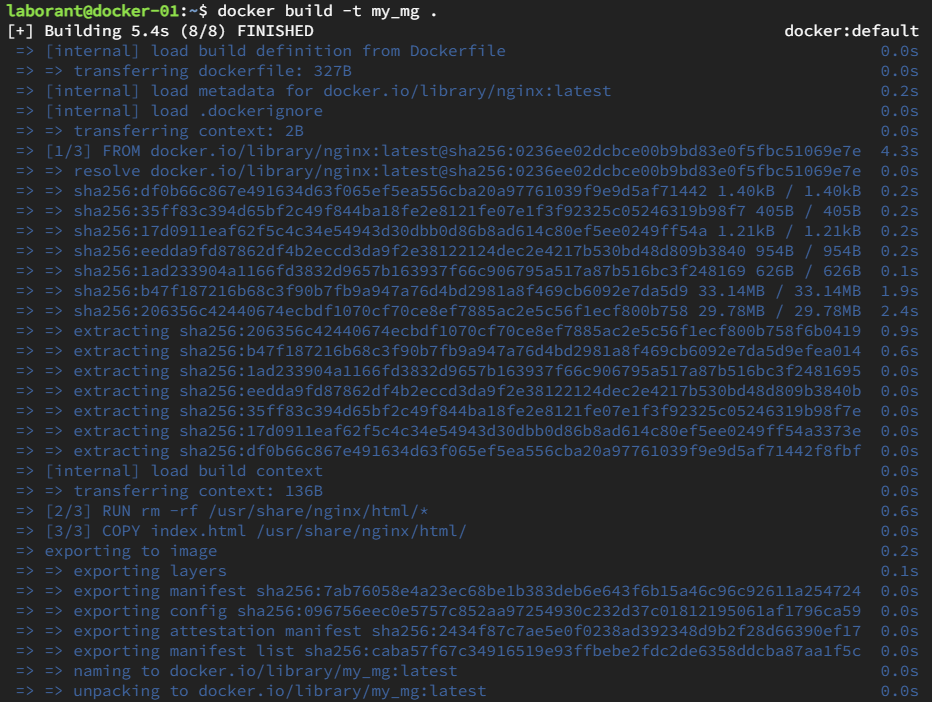

and we build the image : docker build -t my-nginx .

every this is good

now in the second stage (layer) we make a change

we added and echo

FROM nginx:latest



RUN echo "Build step 1"



RUN rm -rf /usr/share/nginx/html/*



COPY index.html /usr/share/nginx/html/



EXPOSE 80



CMD ["nginx", "-g", "daemon off;"]

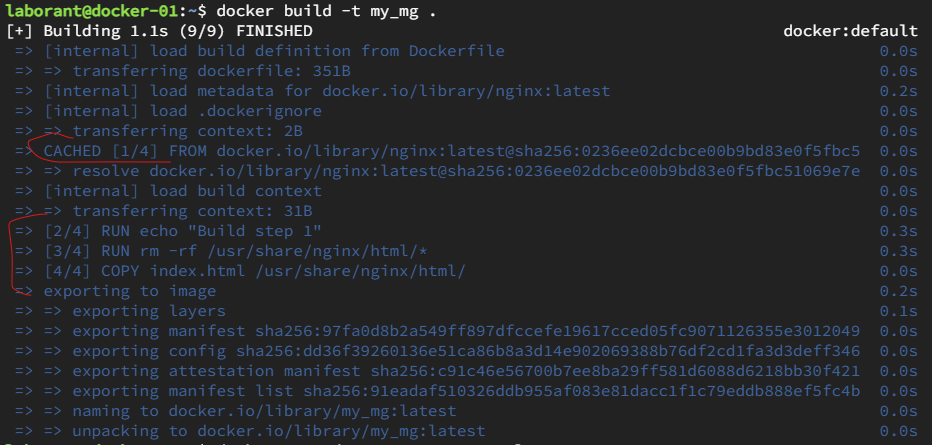

and we re run

we can see that all stages rebuilded from the echo stage

so all above are rebuilded

first stage is cached

Docker Volume: create vs mount

when we create a volume in docker : docker volume create my_data

this will create a directory /var/lib/docker/volumes/my_data/ *_data/ in the host file system

and we mount it when a container is up

for example in a compose.yaml

volumes:

- my_data:/var/lib/mysql

dockerd bind-mount

/var/lib/docker/volumes/my_data/ *_data/ ==> /var/lib/mysql
